Pics and vid of stock suspension

CustomPerformance

TRX Fanatic
Joined
Feb 2, 2021
Messages
130
Reaction score
174
Location
Houston, TX

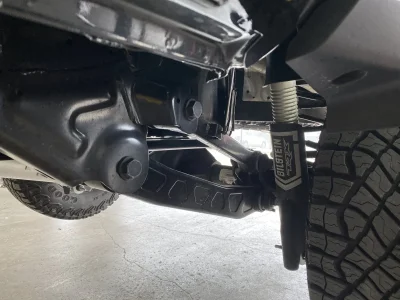

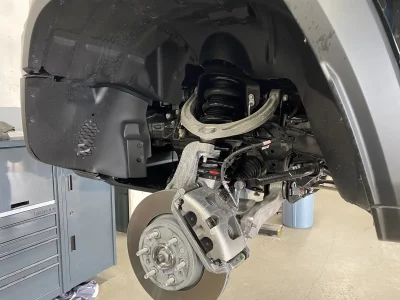

I took some pics of the stock suspension while we had the truck in the air since I thought it might interest some of you to see some pics of it. It's an impressive set up. The rear axle is gusseted, and has several plug welds on the axle tubes to keep them from turning. The rear torque shock to limit axle wrap is a nice touch too. I also took a video of the path of motion of the rear axle (left/rght) as it goes from full extension to ride height.

You can see the video here:


Attachments

  • IMG_1445 2.JPG
    IMG_1445 2.JPG
    404.1 KB · Views: 147
  • IMG_1446 2.JPG
    IMG_1446 2.JPG
    418.1 KB · Views: 101
  • IMG_1447 2.JPG
    IMG_1447 2.JPG
    411.3 KB · Views: 99
  • IMG_1449.JPG
    324.2 KB · Views: 100
  • IMG_1444 2.JPG
    IMG_1444 2.JPG
    301.8 KB · Views: 97

JumpSquadAuto

TRX Addict
Founding Member
Joined
Sep 20, 2020
Messages
1,011
Reaction score
2,001
Location
Boston, Ma
Current Ride
2021 Ram TRX
Current Ride #2
2020 C8 Corvette
Just wondering, what are your thoughts after seeing the under carriage of a side exit exhaust. I've saw a video of the TRX straight piped and the length of the pipes makes it very raspy. Wondering if a true dual side exit would make it sound more throaty. Just curious what you think.


Hellasaurus

TRX Junkie
Joined
Dec 13, 2020
Messages
902
Reaction score
1,128
Location
WI
Military
Army
I took some pics of the stock suspension while we had the truck in the air since I thought it might interest some of you to see some pics of it. It's an impressive set up. The rear axle is gusseted, and has several plug welds on the axle tubes to keep them from turning. The rear torque shock to limit axle wrap is a nice touch too. I also took a video of the path of motion of the rear axle (left/rght) as it goes from full extension to ride height.

You can see the video here:
Nice clean shots, thanks for the uploads.

OP
CustomPerformance

CustomPerformance

TRX Fanatic
Joined
Feb 2, 2021
Messages
130
Reaction score
174
Location
Houston, TX
Just wondering, what are your thoughts after seeing the under carriage of a side exit exhaust. I've saw a video of the TRX straight piped and the length of the pipes makes it very raspy. Wondering if a true dual side exit would make it sound more throaty. Just curious what you think.
I wasn’t paying a lot of attention to exhaust routing while I was under there other than to note there’s a factory x-pipe a bit before the mufflers. I plan to put in some electric cut-out valves right before the mufflers and point them down. A turn down after the muffler might be better than side exhaust for routing and clearance but honestly I was looking at that. Plus, the rear bumper has notches for the big exhaust tips. Until someone comes out with a rear bumper that’s straight it might look funny without tips.


JumpSquadAuto

TRX Addict
Founding Member
Joined
Sep 20, 2020
Messages
1,011
Reaction score
2,001
Location
Boston, Ma
Current Ride
2021 Ram TRX
Current Ride #2
2020 C8 Corvette
I wasn’t paying a lot of attention to exhaust routing while I was under there other than to note there’s a factory x-pipe a bit before the mufflers. I plan to put in some electric cut-out valves right before the mufflers and point them down. A turn down after the muffler might be better than side exhaust for routing and clearance but honestly I was looking at that. Plus, the rear bumper has notches for the big exhaust tips. Until someone comes out with a rear bumper that’s straight it might look funny without tips.
Also very true. Forgot about the rear bumper notches. ADD is supposedly coming out with a bumper soon.

OP
CustomPerformance

CustomPerformance

TRX Fanatic
Joined
Feb 2, 2021
Messages
130
Reaction score
174
Location
Houston, TX
Also very true. Forgot about the rear bumper notches. ADD is supposedly coming out with a bumper soon.
ADD finally got a truck in the shop this past week, so they are getting all the measurements they need. I was actually gong to ship this truck to them to use, but luckily a local guy finally dropped his off on Monday for them to use. They should have bumpers production ready in 2-3 months. I'm an ADD vendor, so as soon as they have stuff available I will let everyone know.


Bambi

The Stripper Hunter
Joined
Jan 4, 2021
Messages
2,697
Reaction score
3,755
Location
Oregon
Current Ride
Ram TRX
Current Ride #2
Range Rover Sport supercharged, F-150 FX4, Jeep Grand Cherokee
I took some pics of the stock suspension while we had the truck in the air since I thought it might interest some of you to see some pics of it. It's an impressive set up. The rear axle is gusseted, and has several plug welds on the axle tubes to keep them from turning. The rear torque shock to limit axle wrap is a nice touch too. I also took a video of the path of motion of the rear axle (left/rght) as it goes from full extension to ride height.

You can see the video here:
Those brakes look fuckin tiny

OP
CustomPerformance

CustomPerformance

TRX Fanatic
Joined
Feb 2, 2021
Messages
130
Reaction score
174
Location
Houston, TX
Those brakes look fuckin tiny
It can definitely use a brake upgrade. I was able to stop pretty quick when I was driving it yesterday, but it's nothing like I'd like it to be for such a heavy truck that will be hurtling down the road at high velocity.


Futant

TRX Fiend
Founding Member
Joined
Oct 17, 2020
Messages
373
Reaction score
546
Location
Durango, CO
Current Ride
Tundra Supercharged with King Off-road suspension
Current Ride #2
Husqvarna TX300i, KTM 350 XC, Yamaha YZ 125
I don’t know about the rest of you but I wish the shocks looked meatier. I’m sure they perform like magic though.
